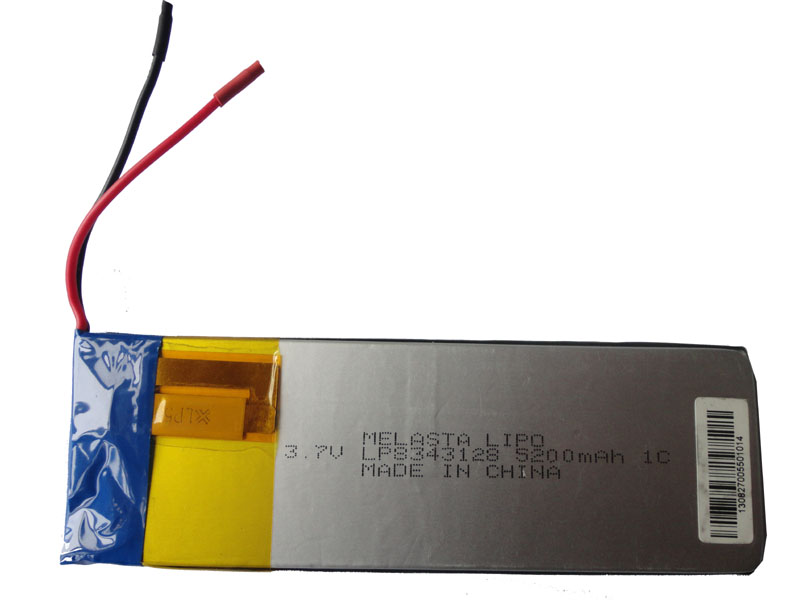

3.7V Lithium Polymer Battery Cell / Lipo Battery Cells 1C 5200mAh

Product Categories
Shenzhen Melasta Battery Ltd
Contact Now

3.7V Lithium Polymer Battery Cell / Lipo Battery Cells 1C 5200mAh

  • 1
  • 2

Place of Origin : China

Brand Name : Melasta

Model Number : LP8343128

Certification : CE, ROHS, KC, UN

Price : Negotiable

Packaging Details : Carton

Payment Terms : L/C, T/T, D/P, Paypal

Supply Ability : 50000PCS/Day

MOQ : 100pcs

e-mail : linda.hou@melasta.com

skype : linda.hubei

Contact Now

3.7V Lithium Polymer Battery Cell / Lipo Battery Cells 1C 5200mAh

Additional Information:

Trademark: MELASTA
Packing: Carton
Standard: CE, ROHS, KC, UN
Origin: China
Production Capacity: 1million/Week

Basic Information:

Model NO.: LP8343128
Type: Lithium-Polymer Battery Cell
Connection Mode: Series and Parallel
Export Markets: Global

Application:

Lithium polymer batteries can be applied to RC Model, Formula Student Racing car, Hobby Racing car, UPS, E-bicycle, E-scooter, Electric Wheelchair, Power tools and other special products which need high drain design.

Typical Capacity5.2Ah
Nominal Voltage3.7v
Charge ConditionMax. Continuous charge Current5.2A
Peak Charge Current10A(≤1 sec)
Voltage4.2v±0.03v
Discharge ConditionMax. Continuous discharge Current5.2A
peak disdharge Current15.6A(≤2 sec)
Cut-off Voltage3.0v
AC Impedance(Mohm)30.0
cycle life500cycles
Operating Temp.charge0~45 degrees Celsius
discharge-20~60 degrees Celsius
Cell DimensionsThickness(T)8±0.3mm
Width(W)43.5±0.5mm
Length(L)130.0±0.5mm
Distance Between 2 tabs23±1mm
Weight(g)102.5±2.0

Typical Capacity:0.5CmA,4.2V~3.0V@23±2 degrees Celsius

3.7V Lithium Polymer Battery Cell / Lipo Battery Cells 1C 5200mAh3.7V Lithium Polymer Battery Cell / Lipo Battery Cells 1C 5200mAh3.7V Lithium Polymer Battery Cell / Lipo Battery Cells 1C 5200mAh
